FTTH ODN Solution for Fast and Reliable Fiber Access Deployment
Evolux supplies one-stop passive fiber optic components for FTTH, FTTx and PON access networks, including SC/APC connectors, adapters, pigtails, patch cords, PLC splitters and terminal boxes.
FTTH ODN Solution for Fast and Reliable Fiber Access Deployment
Evolux supplies one-stop passive fiber optic components for FTTH, FTTx and PON access networks - SC/APC connectors, adapters, pigtails, patch cords, PLC splitters and terminal boxes.
From central office patching to the last-mile subscriber drop, our FTTH product solution helps telecom operators, contractors and distributors build stable, scalable and easy-to-install optical distribution networks.
ears Fiber Optic Supply Experience
Fiber Optic Connectors Supplied
FTTH & FTTx Project Orders Supported
Labeling & Packing Available

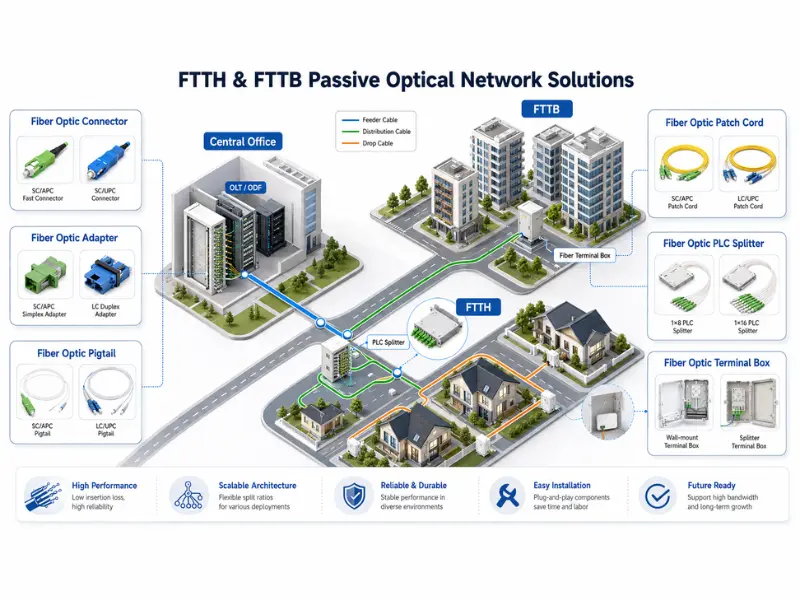

Typical FTTH ODN Network Architecture
In a typical FTTH PON network, passive optical components connect the central office to end users without active equipment in the distribution path. Evolux provides the key passive components used for splitting, splicing, patching, termination and subscriber connection
OLT
Central Office
01
ODF / Cabinet
Feeder Cable
02
PLC Splitter
1×4 – 1×64
03
Terminal Box
Distribution
04
Drop → ONT
Subscriber
05
Each section of the FTTH network requires compatible passive components. Connector type, splitter ratio, terminal box capacity, fiber type and installation environment all affect network performance and installation efficiency. Evolux helps customers select matching products according to the project topology, subscriber quantity and deployment scenario.
Recommended FTTH Product Families
Evolux provides the main passive fiber optic product families used in FTTH and PON access networks. These products can be supplied individually or combined into a customized FTTH project BOM.
Fiber Optic Connector
SC/APC fast connector, SC/UPC connector and LC connector for field termination, ONT connection, terminal box and patching.
Used in: field termination · ONT · patching
Fiber Optic Fast Connector Sc Apc
Fiber Optic Sc Connector
Fiber Optic Lc Connectors
Fiber Optic Adapter
SC/APC simplex adapter, LC duplex adapter and flange adapter for terminal boxes, distribution boxes, ODF and splitter boxes.
Used in: terminal box · ODF · splitter box

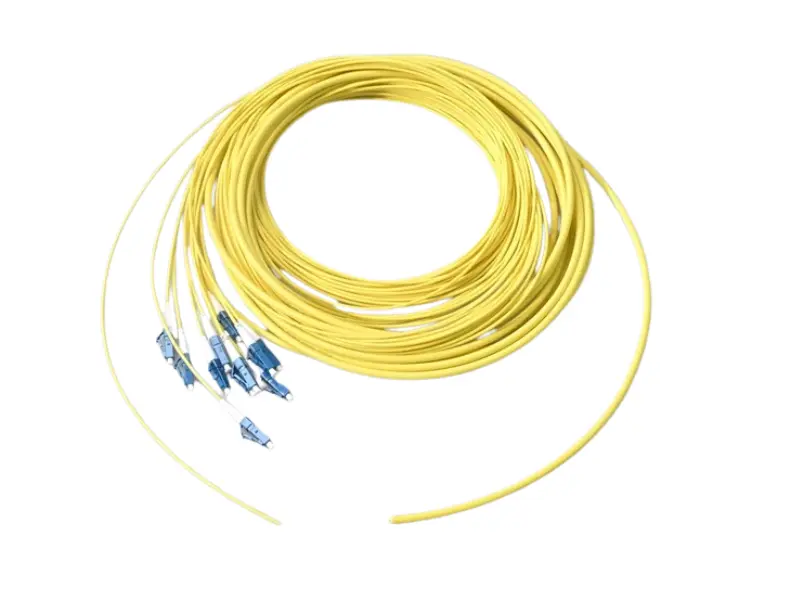

Fiber Optic Pigtail
SC/APC and LC/UPC pigtails in OS2 G.657A1/A2 fiber for splicing points, terminal boxes and distribution frames.
Used in: splice points · terminal box · ODF

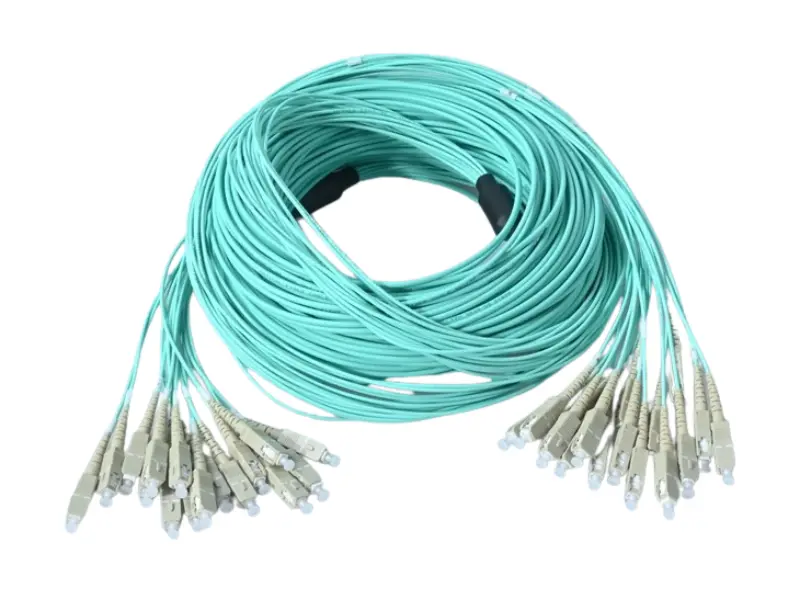

Fiber Optic Patch Cord
SC/APC simplex, LC and armored patch cords for OLT, ODF, splitter, terminal box and ONT connection.
Used in: OLT · ODF · splitter · ONT

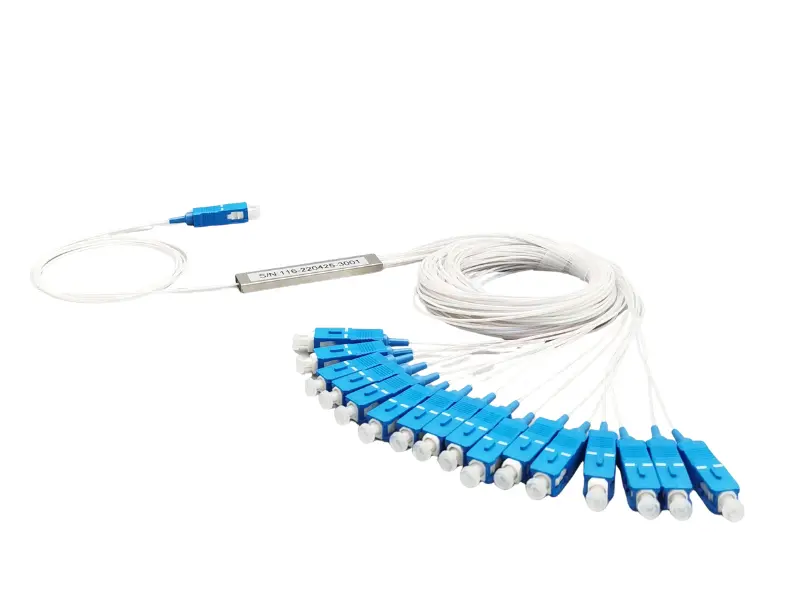

Fiber Optic PLC Splitter
1×4, 1×8, 1×16, 1×32 and 1×64 PLC splitters for PON signal splitting, centralized and secondary splitting.
Used in: PON splitting · centralized · secondary
Fiber Optic Terminal Box
2 to 24 core terminal boxes, splitter boxes and wall-mount boxes for corridor, wall, pole and subscriber access points.
Used in: corridor · wall/pole · access points
Whether your project needs standard SC/APC patch cords or a full set of terminal boxes, PLC splitters, adapters and pigtails - Evolux supports flexible product matching for different FTTH deployment models.
FTTH Solution Types for Different Deployment Needs
Different FTTH projects require different installation methods. Evolux supports splicing-based FTTH, pre-terminated FTTH and MDU building fiber distribution solutions.

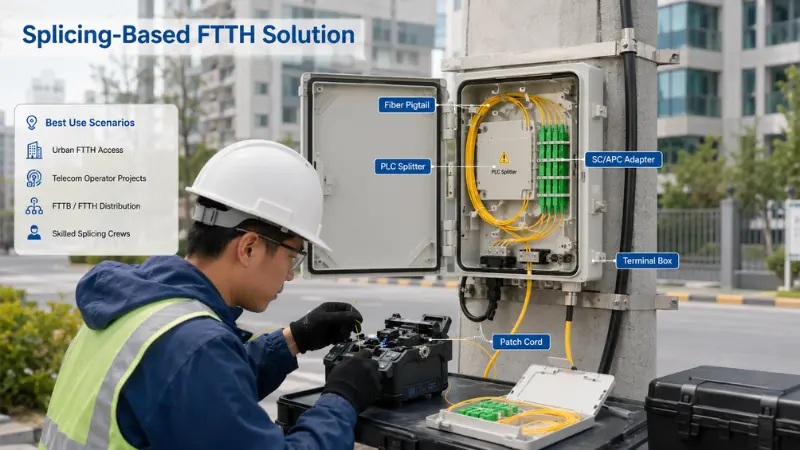

Splicing-Based FTTH Solution
For traditional FTTH projects, cost-sensitive access networks and deployments where field fusion splicing is required.
Core benefit: stable connection and flexible routing - built for long-term fixed access networks.
Fiber pigtails are fusion spliced with feeder or distribution fibers, while adapters and terminal boxes provide organized, protected connection points - ideal for projects needing stable long-term performance and flexible onsite routing.
- SC/APC Adapter
- PLC Splitter
- Terminal Box
- Patch Cord
Best use scenarios
- Urban FTTH access networks
- Telecom operator projects
- FTTB / FTTH distribution points
- Teams with skilled splicing crews

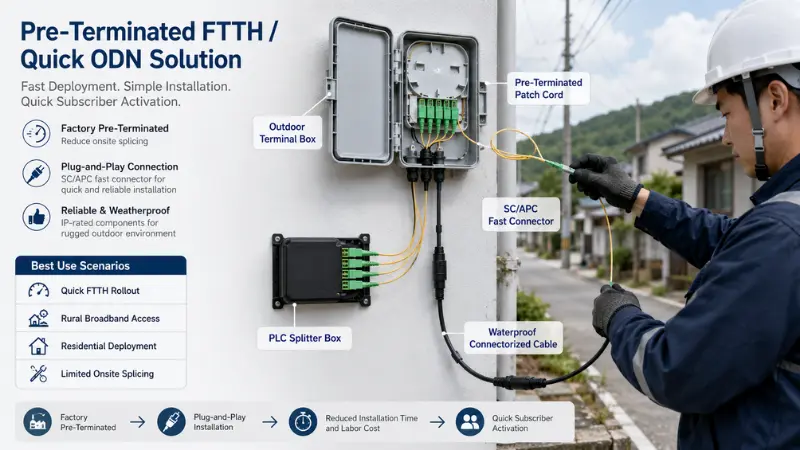

Pre-Terminated FTTH / Quick ODN
For fast subscriber activation, low-rise residential, rural broadband and markets with high labor costs.
Core benefit: reduce field splicing, simplify installation and speed up subscriber activation.
Factory-terminated cables, connectors and terminal boxes improve deployment speed and reduce installation errors - suited to fast FTTH rollouts where installation efficiency and consistent quality matter most.
- Description Description Description
- Specifications
- Features
- Applications
Best use scenarios:
- Quick FTTH rollout
- Rural broadband access
- Residential community deployment
- Limited onsite splicing resources

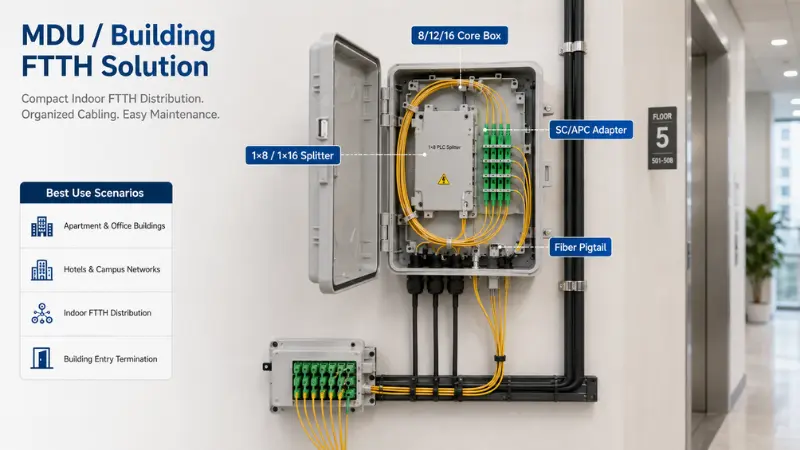

MDU / Building FTTH Solution
For apartments, office buildings, hotels, campuses and multi-dwelling units.
Core benefit: compact fiber distribution for multi-dwelling units and indoor building entry points.
For MDU and building FTTH, compact distribution and easy maintenance are key. Evolux provides terminal boxes, splitters, adapters, pigtails and indoor patch cords for corridor, floor-level and subscriber-side access points.
- 8/12/16 Core Box
- 1×8 / 1×16 Splitter
- SC/APC Adapter
- Fiber Pigtail
Best use scenarios
- Apartment & office buildings
- Hotels & campus networks
- Indoor FTTH distribution
- Building entry termination
How to Select FTTH Products for Your Project?
The right FTTH configuration depends on network structure, splitter design, installation environment and subscriber quantity. Use this guide to choose suitable passive components before requesting a quotation.
| Project Condition | Recommended Direction | Information to Confirm |
|---|---|---|
| Centralized Splitting | PLC splitter cabinet / ABS / LGX | Splitter ratio, port quantity, connector type, installation space |
| Secondary Splitting | Terminal box with splitter | User density, floor quantity, maintenance method |
| Outdoor Wall / Pole Mounting | IP65 outdoor terminal box | Waterproof level, cable entry direction, mounting method |
| Corridor / Indoor Installation | Compact box + pigtail + patch cord | Flame-retardant requirement, bending radius, box size |
| Fast Subscriber Activation | Pre-terminated drop patch cord | Cable length, connector type, pulling eye, waterproofing |
| PON Network Connection | SC/APC connector + PLC splitter | Splitter ratio, optical power budget, OLT/ONT interface |
For most FTTH PON networks, SC/APC connectors are commonly used to help reduce reflection. However, the final connector type should always match the OLT, ONT, splitter and project specification. Evolux can help confirm product compatibility before mass production.
Engineering Control Points for FTTH ODN Deployment
FTTH projects require more than product purchasing. Optical performance, installation environment, connector compatibility and test documentation should all be considered before confirming the final product list.

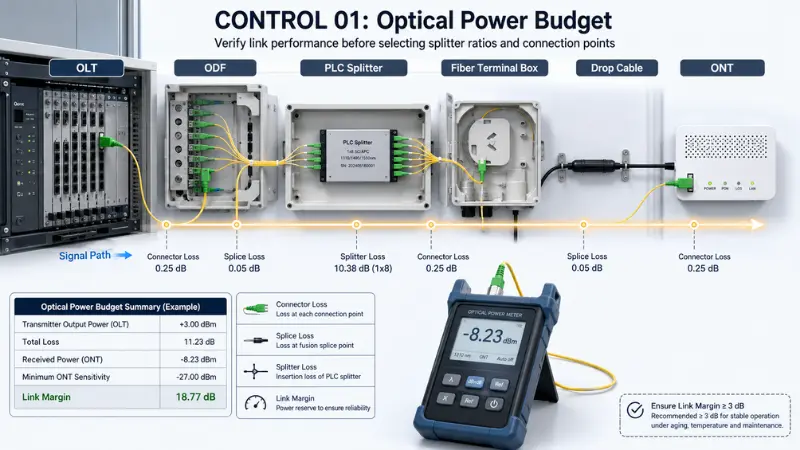

CONTROL 01
Optical Power Budget
Confirm splitter loss, connector loss, splice loss and link margin before selecting splitter ratios and connection points. A proper power budget keeps signal stable from OLT to ONT.

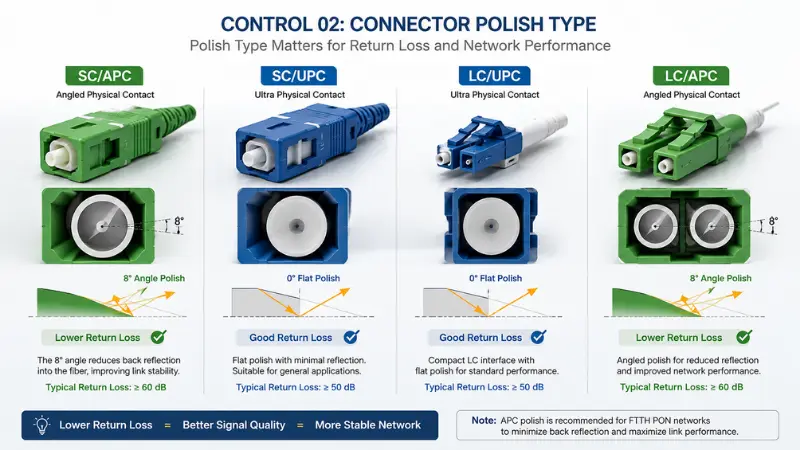

CONTROL 02
Connector Polish Type
PON networks commonly use SC/APC because APC polish reduces return loss. SC/UPC, LC/UPC or LC/APC may also apply - see PC vs UPC vs APC polish.

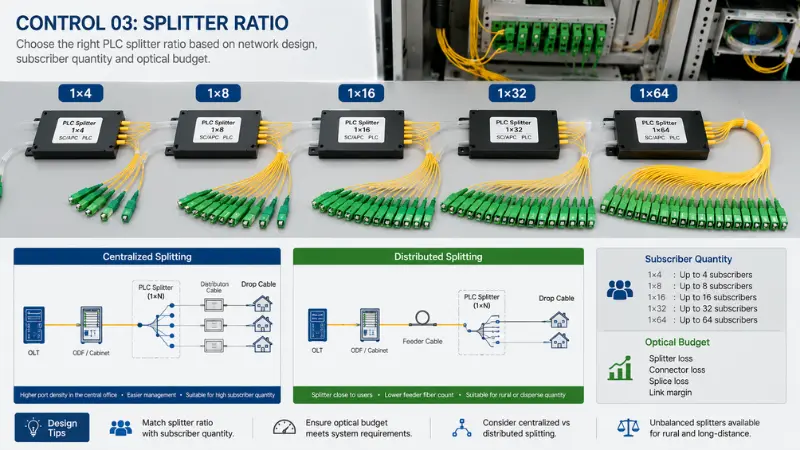

CONTROL 03
Splitter Ratio
Common PLC ratios are 1×4, 1×8, 1×16, 1×32 and 1×64. Select by subscriber quantity, optical budget and centralized vs distributed design - including unbalanced splitting for rural.

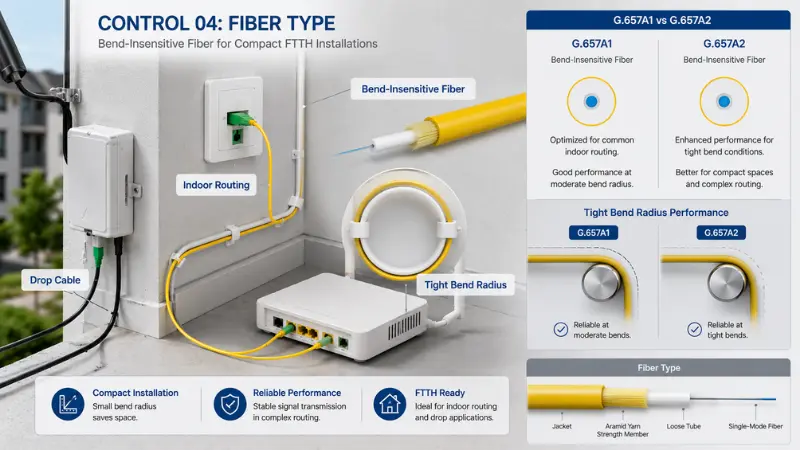

CONTROL 04
Fiber Type
For drop cable and indoor routing, bend-insensitive fibers like G.657A1 / G.657A2 are preferred for compact spaces and tight bend radius. Compare single-mode vs multimode.

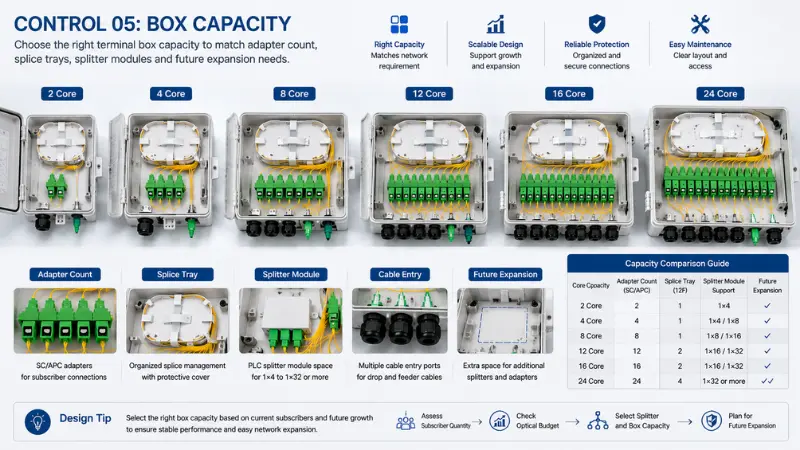

CONTROL 05
Box Capacity
Match terminal box capacity to adapter count, splice trays, splitter modules and future expansion. Common options: 2, 4, 8, 12, 16 and 24 core.
CONTROL 06

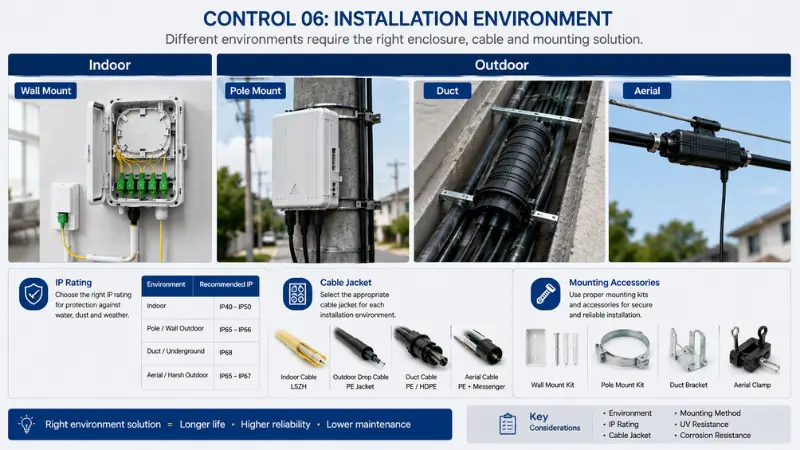

Installation Environment
Indoor, outdoor, wall, pole, duct and aerial environments may need different cable jackets, box materials, IP ratings and mounting accessories. See indoor & outdoor installation.
FTTH Procurement & Engineering Guides
Reference articles to help your team plan PON splitting, choose connectors and prepare a complete FTTH passive component BOM.
Customized FTTH Product Matching & BOM Support
Every FTTH project has different requirements. Evolux supports flexible product matching and customization so you can prepare the right materials for access network deployment.
Connector: SC/APC, SC/UPC, LC/UPC, LC/APC
Cable length & cable jacket
PLC splitter ratio
Terminal box capacity
Indoor or outdoor install type
Adapter quantity & panel config
OEM label & packaging
Datasheet & IL/RL test report
Send your network topology, subscriber quantity, splitter plan and installation environment - our team will recommend compatible connectors, adapters, pigtails, patch cords, PLC splitters and terminal boxes for your FTTH project.
FTTH ODN Solution FAQ
Q: What products are usually required for an FTTH ODN project?
A: A typical FTTH ODN project may require fiber optic connectors, adapters, pigtails, patch cords, PLC splitters, terminal boxes, drop cables and related accessories. The final product list depends on the network topology, splitter ratio, installation environment and subscriber quantity.
Q: Can Evolux provide a complete FTTH product BOM?
A: Yes. Customers can send us the network topology, subscriber quantity, splitter plan and installation environment. Evolux can recommend a suitable FTTH passive component BOM based on the project requirement.
Q: Which connector type is commonly used in FTTH PON networks?
A: SC/APC is commonly used in FTTH PON networks because it helps reduce optical reflection. However, the final connector type should match the OLT, ONT, splitter and project specification. See our SC/APC connector guide.
Q: What PLC splitter ratios are available?
A: Common PLC splitter ratios include 1×2, 1×4, 1×8, 1×16, 1×32 and 1×64. Other configurations can be discussed according to project requirements. Browse all PLC splitters.
Q: Can you support pre-terminated FTTH solutions?
A: Yes. Evolux can support pre-terminated patch cords, fast connectors, terminal boxes and related passive components to help reduce onsite splicing and simplify installation.
Q: Can you provide products for both indoor and outdoor FTTH installation?
A: Yes. Evolux provides indoor and outdoor terminal boxes, patch cords, pigtails, adapters and other FTTH passive components. Outdoor applications may require waterproof boxes, suitable cable jackets and proper mounting accessories.
Build Your FTTH ODN Project with Matched Passive Fiber Components
Whether you need standard FTTH products or a customized project BOM, Evolux can help you match connectors, adapters, pigtails, patch cords, PLC splitters and terminal boxes for your network deployment.
